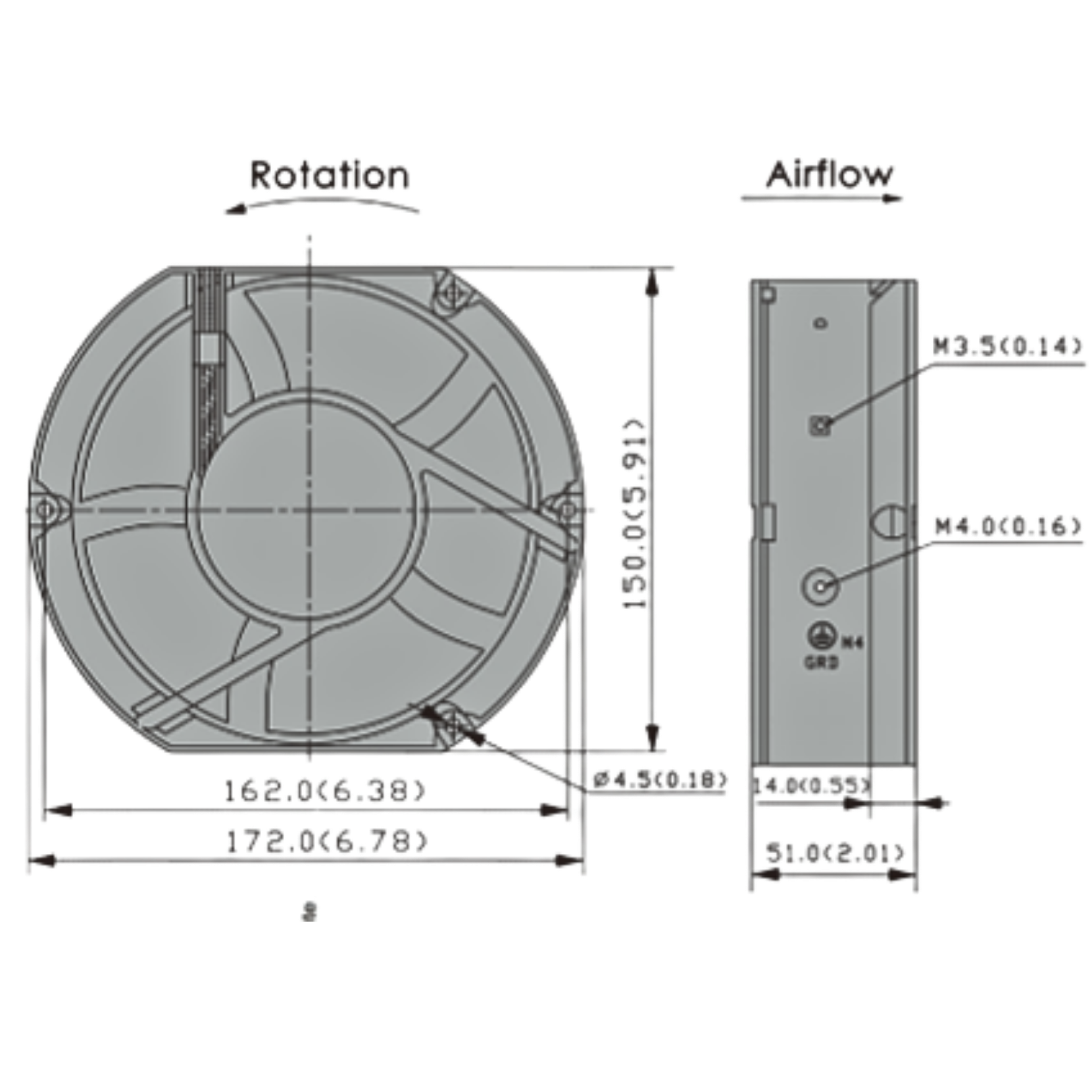

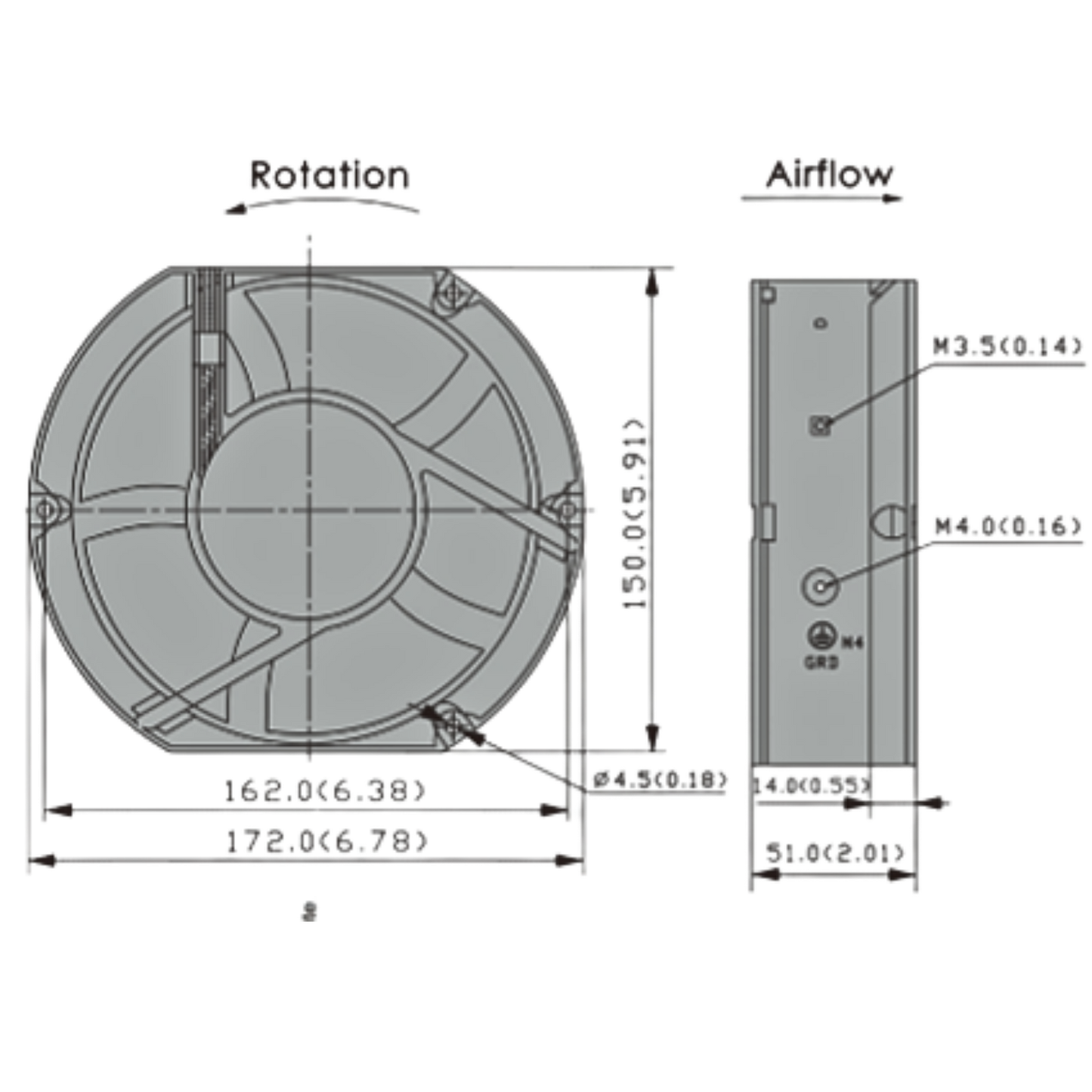

DIMENSIONS : 172x150x51 mm
BEARING TYPE : BALL
RATED VOLTAGE : 48 VDC
OPERATING VOLTAGE RANGE : 33 VDC - 52.8 VDC
START-UP VOLTAGE : 33 VDC , NORMAL
REAL CURRENT : 1.25 Amp
REAL POWER : 60.00 Watt
RATED CURRENT : 1.50 Amp + 10 %MAX
RATED POWER : 72.00 Watt
RATED SPEED : 5300 RPM ± 10 %
(IN FREE AIR AT RATED VOLTAGE)
AIR FLOW : 417.000 CFM (min.: 375.300 CFM)
AIR FLOW : 11.801 CMM (min.: 10.620 CMM)
(IN FREE AIR AT RATED VOLTAGE)
STATIC AIR PRESSURE : 1.690 Inch H2O (min.: 1.368
STATIC AIR PRESSURE : 42.926 mm H2O (min.: 34.770
(IN FREE AIR AT RATED VOLTAGE)
NOISE LEVEL : 67.9 dB (A) (max.: 71.9 dB(A))
MOTOR PROTECTION : BY IC
POLARITY PROTECTION : YES
CONNECTION LEAD TYPE : WIRE, AWG# 22
LIFE EXPECTANCY : 70000 Hours at 40¿ / 65% RH
NET WEIGHT : 762 Gram.
