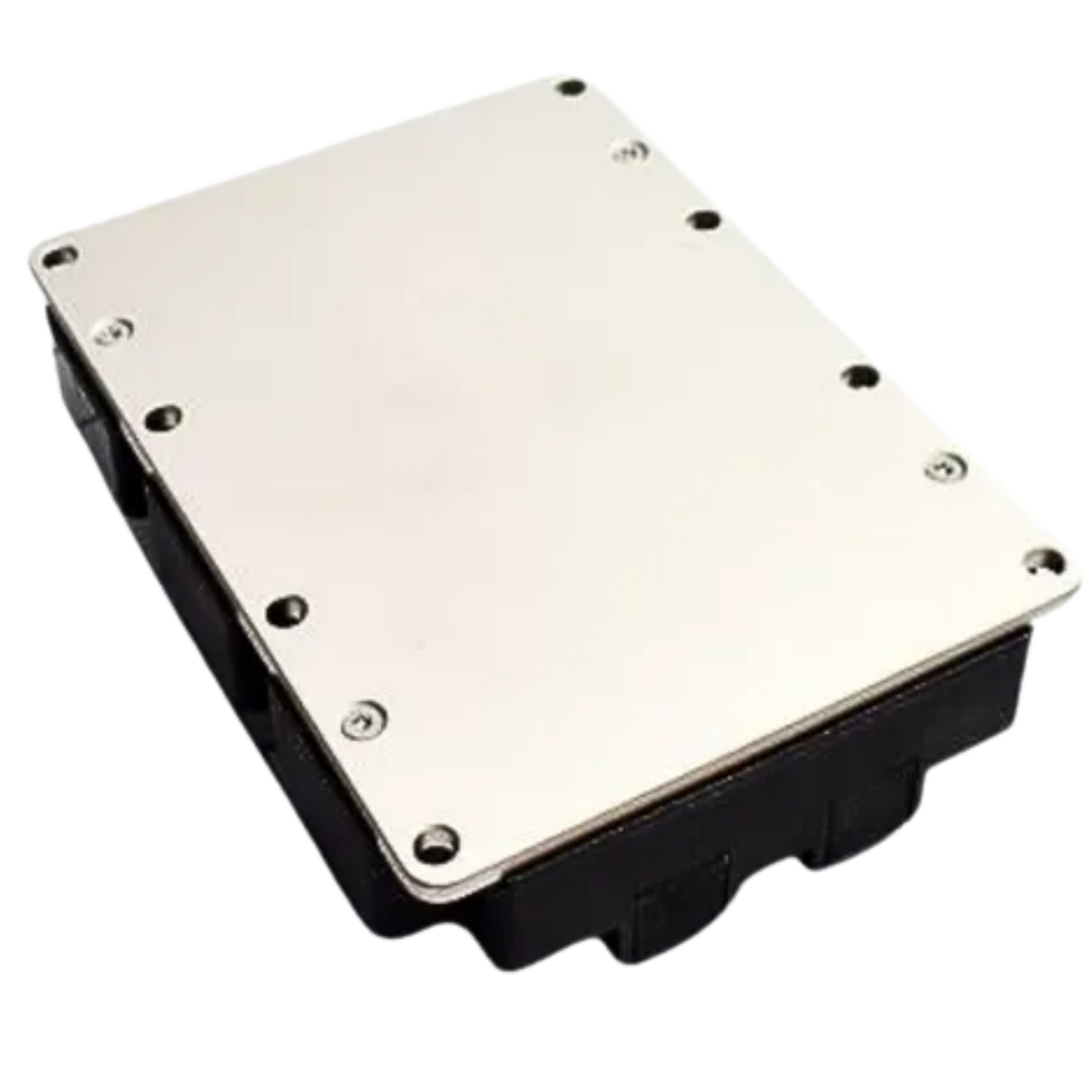

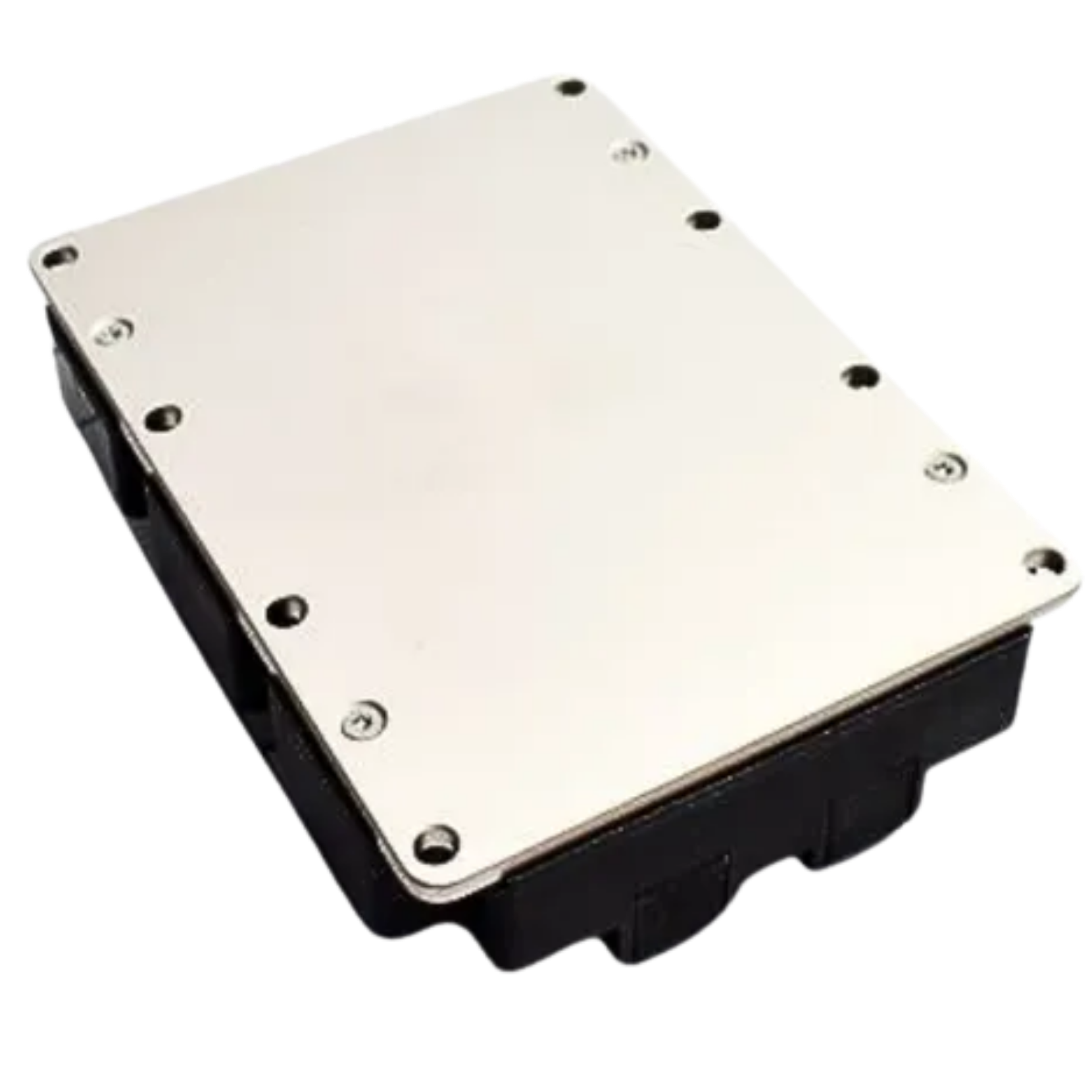

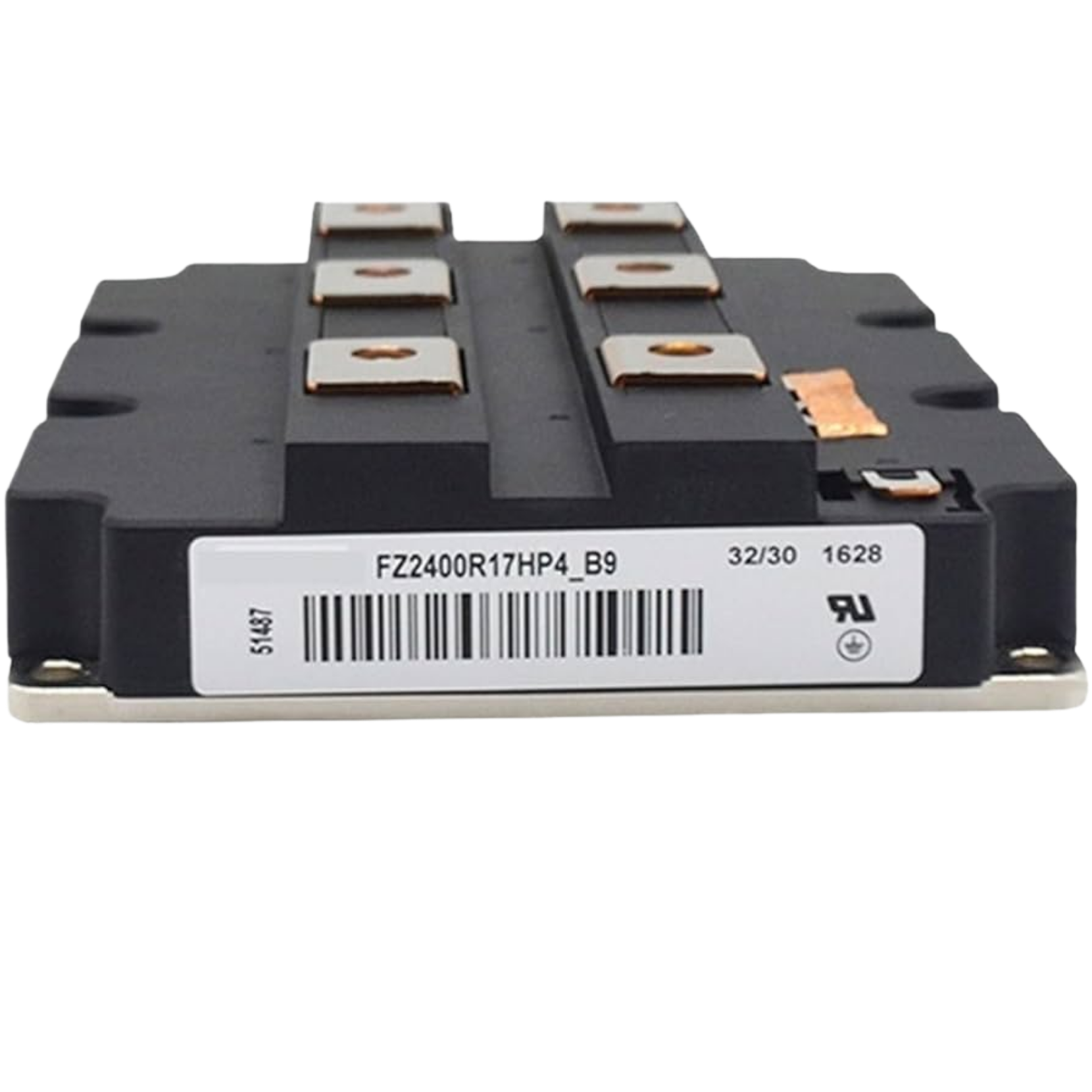

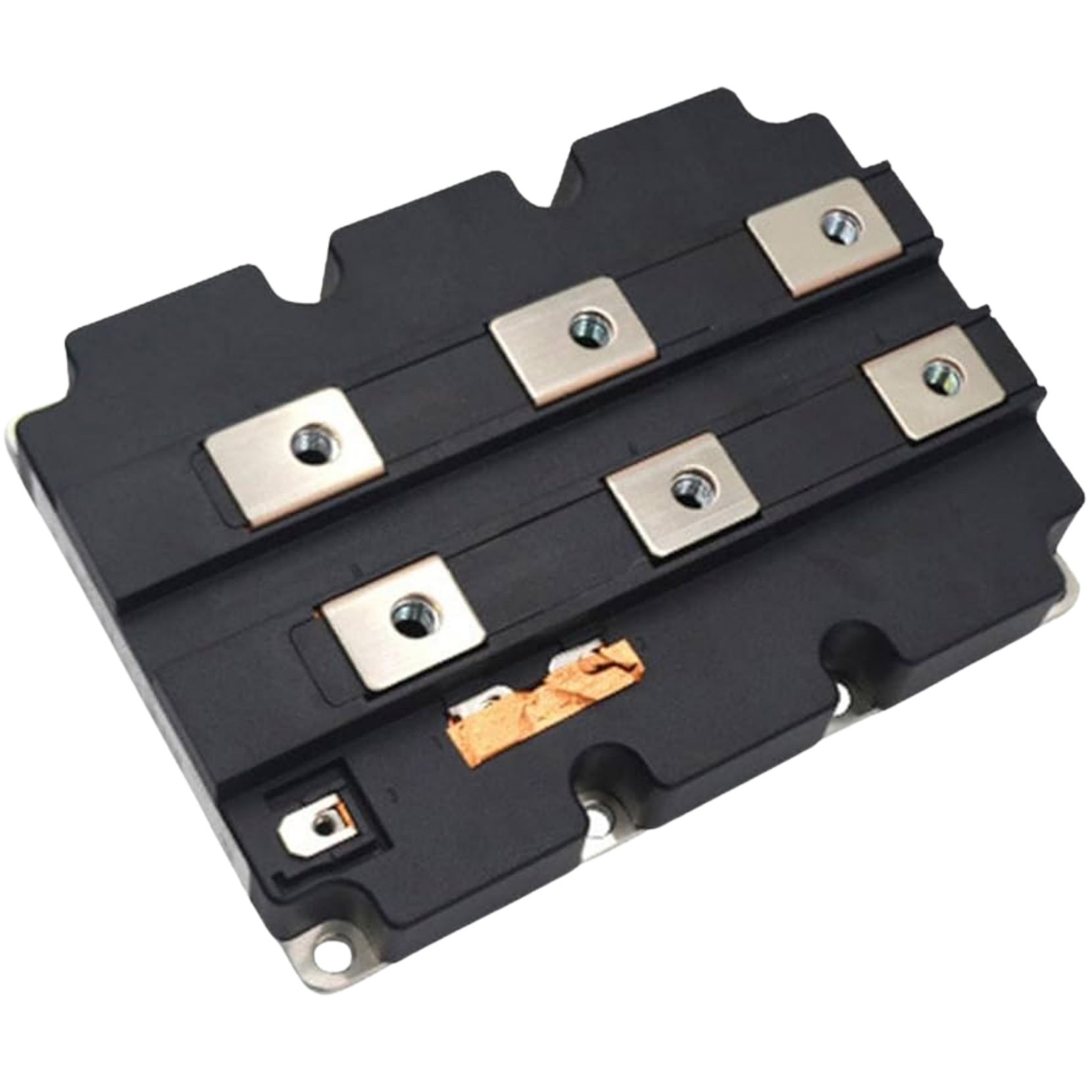

Módulo IGBT FZ2400R17HP4_B9 1700V 2400A

Manufacturer: Infineon
Product Category: IGBT Modules
Product: IGBT Silicon Modules
Configuration: Single
Collector- Emitter Voltage VCEO Max: 1.7 kV
Collector-Emitter Saturation Voltage: 1.9 V
Continuous Collector Current at 25 C: 2.4 kA
Gate-Emitter Leakage Current: 400 nA
Pd - Power Dissipation: 14 kW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Packaging: Tray
Brand: Infineon Technologies
Product Type: IGBT Modules
Series: Trenchstop IGBT4 - P4
Subcategory: IGBTs
Tradename: TRENCHSTOP
Unit Weight: 1.505 kg
